| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | MHC AP |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | EB3C3084B1C |
| الحد الأدنى لكمية: | قابل للتفاوض |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | التعبئة المحايدة أو حسب المتطلبات |
| وقت التسليم: | 1- أيام العمل تعتمد بشكل أساسي على الكمية |
| شروط الدفع: | تي / تي ويسترن يونيون باي بال |
| القدرة على العرض: | 5000 قطعة/شهر |
| رقم الجزء: | EB3C3084B1C | اسم الجزء: | ذراع التحكم |
|---|---|---|---|
| موديل السيارة: | فورد رينجر | مقاس: | معيار تصنيع المعدات الأصلية |
| موضع: | المحور الأمامي ، اليمين ، الجزء العلوي | ضمان: | 1 سنة |

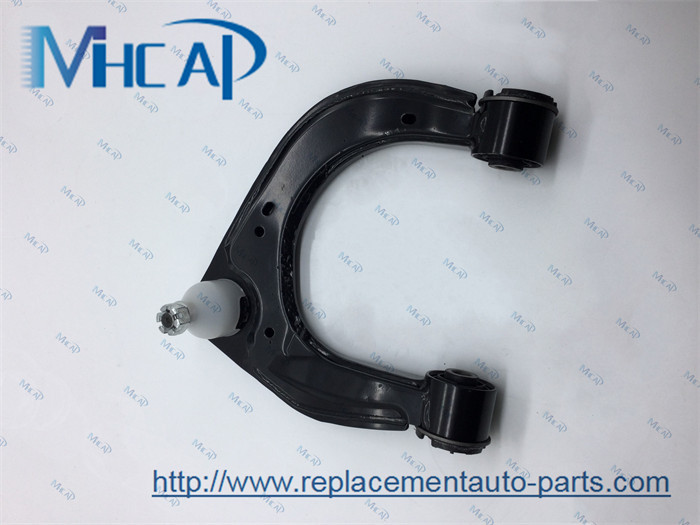

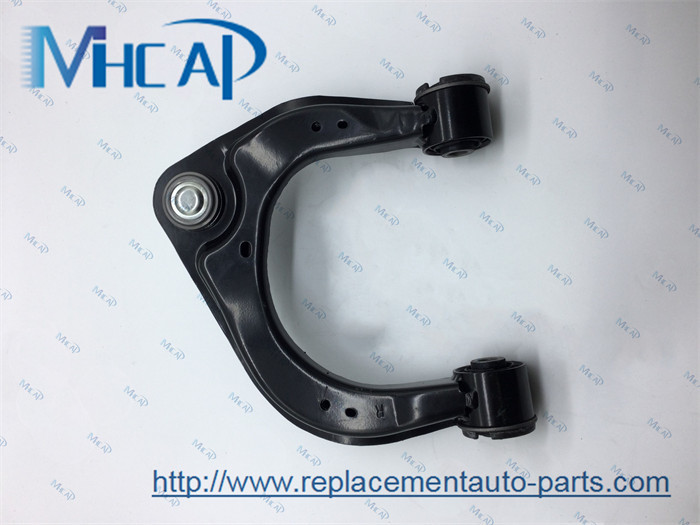

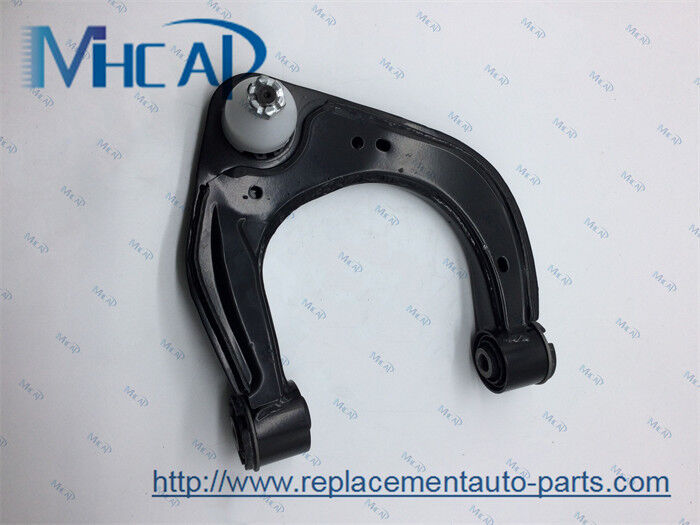

Auto Parts Control Arm OEM EB3C3084B1C 5232166 Front Axle, Right, Upper Ford Ranger
Specifications:
| Part Name: | Control Arm |
| Part Number: |
EB3C3084B1C 5232166 |
| Car Model: | Ford Ranger |
| Position: |
Right, Upper Ford Ranger |
| Packing: | Poly Bag |
| Size: | OEM Standard |
| Conditon: | Brand New |
| Sample: | Available |
| Certification: | ISO9001 |
| Guarantee: | 6 Months |
| Payment: | T/T, Western Union, ,etc. |
| Shipment: | By sea,by air or express,DHL,EMS,TNT,etc. |
| Delivery: | 2-5 work days, mainly depends on the quantity. |
About Control Arm:
In automotive suspension, a control arm, also known as an A-arm, is a hinged suspension link between the chassis and the suspension upright or hub that carries the wheel.
The inboard (chassis) end of a control arm is attached by a single pivot, usually a rubber bushing. It can thus control the position of the outboard end in only a single degree of freedom, maintaining the radial distance from the inboard mount. Although not deliberately free to move, the single bushing does not control the arm from moving back and forth; this motion is constrained by a separate link or radius rod.
This is in contrast to the wishbone. Wishbones are triangular and have two widely spaced inboard bearings. These constrain the outboard end of the wishbone from moving back and forth, controlling two degrees of freedom, and without requiring additional links.
Most control arms form the lower link of a suspension. A few designs use them as the upper link, usually with a lower wishbone. The additional radius rod is then attached to the upper arm.
Car Model :
| Model | Enigne | CC | KW | Cylinder | Type | Year |
| FORD RANGER (TKE) 2011/04- | ||||||
| RANGER (TKE) 2.0 EcoBlue 4x4 | 1995 | 157 | 4 | SUV | 2018- | |
| RANGER (TKE) 2.0 EcoBlue 4x4 | 1995 | 125 | 4 | SUV | 2019- | |
| RANGER (TKE) 2.0 EcoBlue 4x4 | 1995 | 96 | 4 | SUV | 2019- | |
| RANGER (TKE) 2.2 TDCi | GBVAJQW | 2198 | 92 | 4 | Pickup | 2011- |
| RANGER (TKE) 2.2 TDCi | GBVAJPF | 2198 | 88 | 4 | Pickup | 2011- |
| RANGER (TKE) 2.2 TDCi | GBVAJQJ | 2198 | 110 | 4 | Pickup | 2011- |
| RANGER (TKE) 2.2 TDCi | 2198 | 96 | 4 | Pickup | 2015- | |
| RANGER (TKE) 2.2 TDCi | 2198 | 118 | 4 | Pickup | 2015- | |
| RANGER (TKE) 2.2 TDCi 4x4 | GBVAJQW | 2198 | 92 | 4 | Pickup | 2011- |
| RANGER (TKE) 2.2 TDCi 4x4 | GBVAJQJ | 2198 | 110 | 4 | Pickup | 2011- |
| RANGER (TKE) 2.2 TDCi 4x4 | 2198 | 96 | 4 | Pickup | 2015- | |
| RANGER (TKE) 2.2 TDCi 4x4 | 2198 | 118 | 4 | Pickup | 2015- | |
| RANGER (TKE) 2.5 Flex | 2488 | 127 | 4 | Pickup | 2012- | |
| RANGER (TKE) 2.5 i | GBVAF GBVAL GBVAK | 2488 | 122 | 4 | Pickup | 2011- |
| RANGER (TKE) 2.5 i 4x4 | GBVAF GBVAK GBVAL | 2488 | 122 | 4 | Pickup | 2011- |
| RANGER (TKE) 3.2 TDCi | SAFA | 3198 | 147 | 5 | Pickup | 2011- |
| RANGER (TKE) 3.2 TDCi 4x4 | SAFA | 3198 | 147 | 5 | Pickup | 2011- |
We Also Supply Following Goods:
| 1 |  |
48702-60130 | REAR BEAM ARM |
UZJ200 URJ202 |
| 2 | |
48702-60140 | REAR BEAM ARM |
UZJ200 URJ202 |
| 3 | |
48706-60030 | REAR BEAM ARM |
FZJ80 HZJ81 |
| 4 | |
48655-60030 | LOWER ARM | RZJ120 KDN215 |
| 5 | |
48654-60030 | LOWER ARM | RZJ120 KDN215 |
